L14-9150 LINEAIR
HUNTERDOUGLAS
DERAKO® CEILING

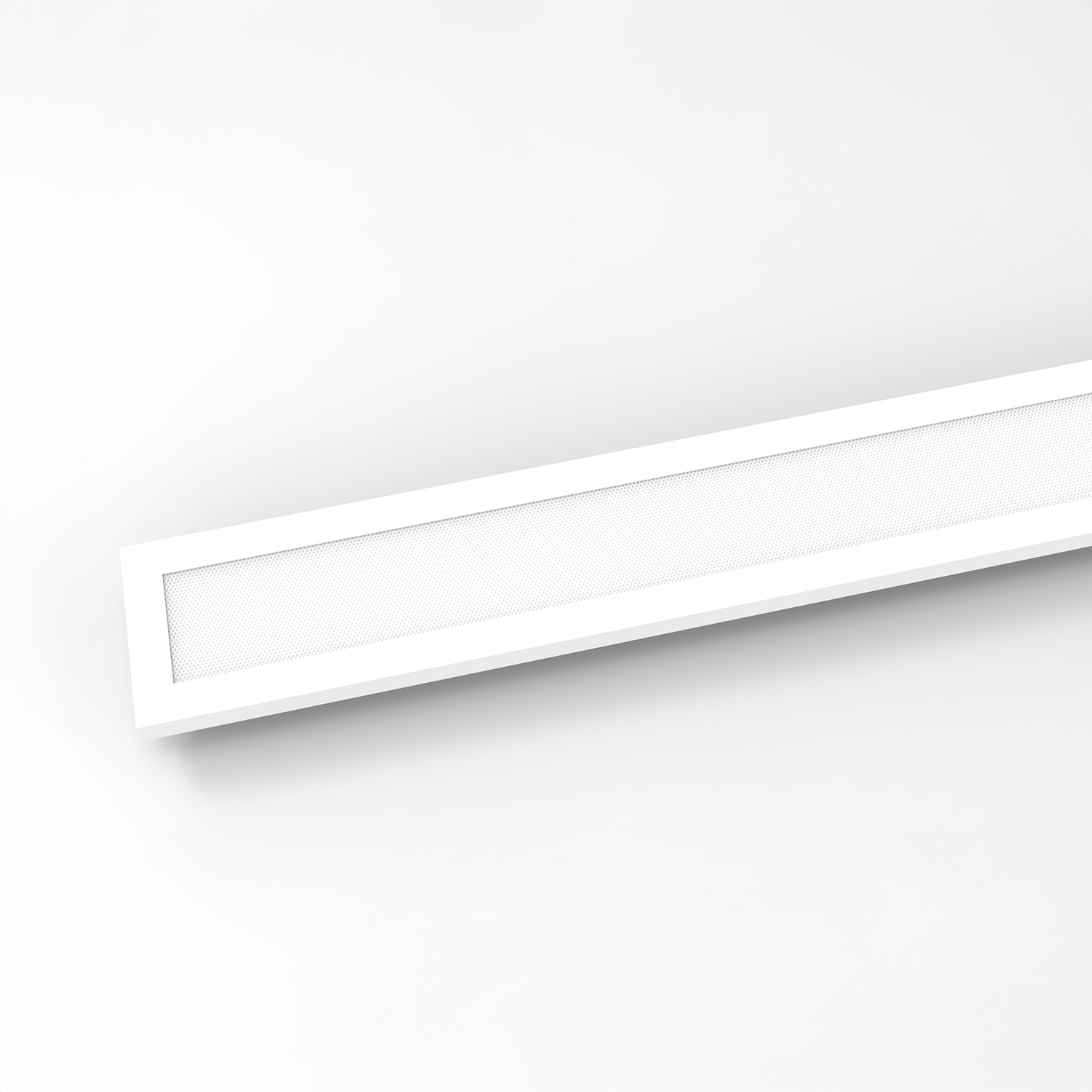

This fixture has been specifically developed for the DERAKO® Ceiling System, with dimensions that match the width of the wooden panels. For project-based needs, the fixtures can be custom-made to the required width. The design allows the fixtures to be clicked into the DERAKO® carrier, just like the wooden panels. The L14-9150 is available in two colors, black and white, with the option of a custom RAL color. Additionally, you can choose between light colors 3000K and 4000K. The 92mm width with a length of 1500mm will be kept in stock in black and white, 3000K and 4000K. Variations on these specifications will be produced on a project basis with a lead time of approximately 12-14 weeks.

This fixture is also quick to install as it can be directly clicked onto the DERAKO® carrier without any additional tools.

The separately available Philips Xitanium LED driver can be supplied with a Wieland cord, euro plug, and DALI or Zigbee dimmable options.

The L14-9150 is equipped with a special prismatic shielding, providing excellent uniformity and a low connection value, making it highly suitable for office environments. Fixture housing made of aluminum extrusion profile, available in black or white.

BENEFITS
  • Integrated into DERAKO® linear ceiling ceiling
  • 2 Standard colors
  • Lightcolor 3000K of 4000K
  • 10-year warranty
SPECIFICATIONS

  • Light colors 830 and 840
  • Intensity of 3000lm
  • Long lifespan > 80,000 hours
  • Prismatic cover
  • Optional DALI control
  • Optional wireless dimming and sensing

DIMENSIONS

LIGHT DISTRIBUTION

WOULD YOU LIKE TO KNOW MORE?

The Loerakker LED line has a minimalist look, is economical in energy consumption and comes with a friendly price tag. We can also deliver very quickly, even when it is customised work. We like to help you consider your issues, so come and see us in our light studio on the A1. Please contact us:
